|Architect||Korte Design, Inc|
|Construction Manager||Korte Company|
|Design Build Mechanical||icon Mechanical|
|Value of icon's Work||$1,140,000|

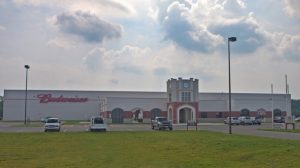

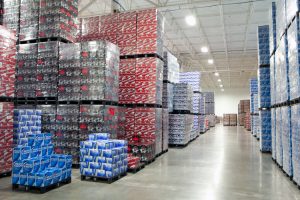

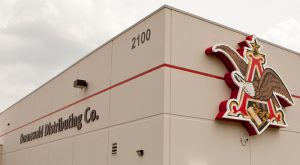

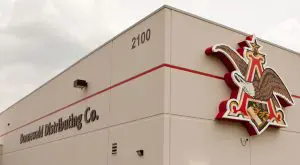

icon Mechanical served as the Design/Build Contractor for this 146,000 square foot office/beer warehouse facility. The facility is designed to Anheuser Busch specifications complete with office, controlled environment warehouse, draught cooler, drive thru truck loading area, and truck wash bay.

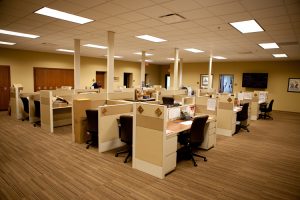

icon Mechanical designed the lake source geothermal HVAC system with a 60,000 feet geothermal loop in the site’s 5 acre lake. The loop is connected to 3 – 50 ton reversible chillers which can provide chilled water and heating water simultaneously. The loop feeds water source condensers for the draught cooler. The condensers feed refrigerant evaporators. The office is served by 50 tons of water source heat pumps with high efficiency condensing boiler backup. The drive thru is heated with hot water unit heaters and has Rite Hite ceiling fans to provide air movement. The drive thru contains NOx detectors and exhaust system to remove pollutants from building. The wash bay is heated with infrared heaters.
The owner’s desire for the most energy efficient beer warehouse resulted in the country’s first ever geothermal beer warehouse. icon provided grant paperwork and energy modeling for the owner to receive energy efficiency grant for Ameren Illinois Act On Energy. This building will be completed in Summer 2010.
Act On Energy:
Provided grant paperwork so project can receive grant funding for its energy efficiency.
- 150 ton reversible chillers
- 50 ton geothermal heat pump AHU’s
- 1,300 MBH backup boiler
- Rite Hite fans
- Infrared Heaters
- 100 tons chilled water coil.
- 14 ton refrigeration system
